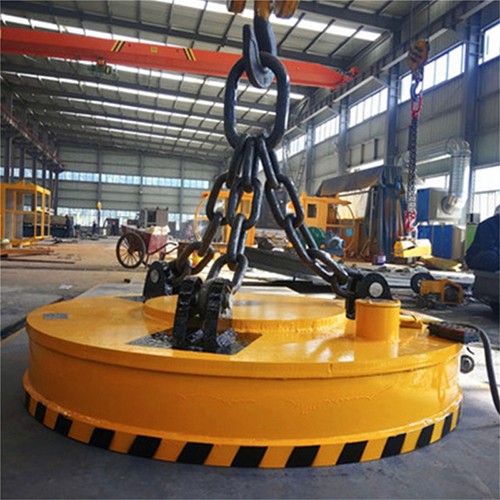

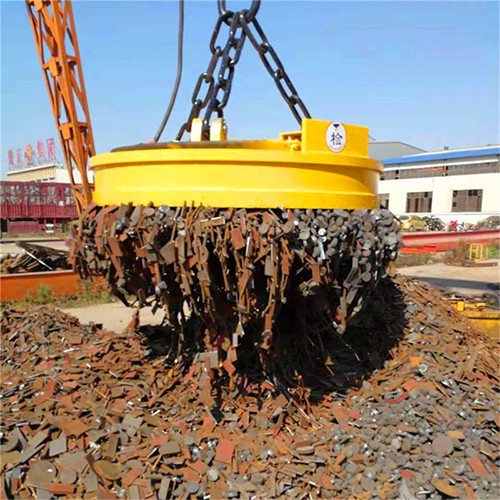

MW5 Powerful Circular lifting magnet for absorbing steel scraps

Features:

With simple structure reliability, it is suitable for working with all kinds of lifting equipment.

This type has fine insulation structure. The insulation treatments adopt the vacuum trying&glue filling, Which has improved the electrical

And mechanical performance of the coils. The insulation grade can reach class special C.

This type adopts a special design magnetic circuit which has large air space and magnetism density. It is made of aluminum wire and the

Coil protection plate is made of the rolled high Mn steel plate that has good performance of wear-resistance& heat-proof. It also has the

Characteristics of light weight,low power consumption, high lifting capacity and long serving lift.

It generally adopts the control mode of constant voltage. It can further improve the lifting capacity if changing to adopt the control mode of

Over excitation.

Main Specifications:

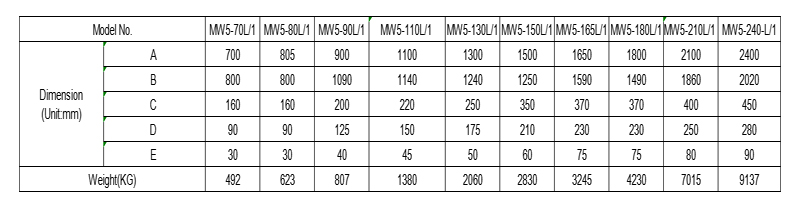

The dimensions and weights of MW5 Series

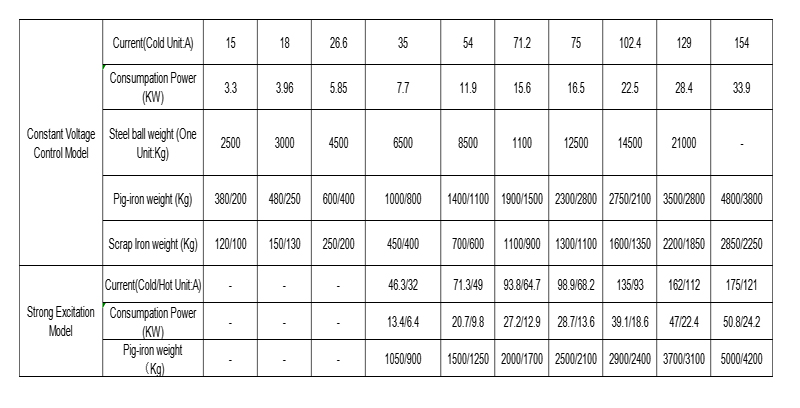

Electric Power&Lifting Capacity (Cold/Hot) of MW5 Series

Notes:

1.By constant Voltage mode adpots DC220V.

2.By strong excitation mode, The voltage is DC290V in the beginning, And it would be DC220V during the transporting operition.
