YC2-X-F Automatic degaussing series Permanent magnets for lifting steel slabs

Features:

This type is made of permanent magnet, that which it is of automatic degaussing permanent magnet lifting equipment. Adopt duplex magnetic circuit design,

The structure is more compact than conventional products.

It is an early patented product in China. It has been widely used in China and have got unanimous praise from customers.

With deep magnetic penetration, and high safety performance.

By using the up and down of the crane hook, It can generate magnetism and degauss magnetism, to achieve the purpose of automatic suction and discharge

Of the steel boards.

No electricity, No power outage risk, long life.

Porvides strong and stable magnetic force with easy operation and in crease productivity.

It can be used as a single unit or as a combination of multiple units.

It is suitalbe for lifting thick plates, steel billets,steel rails.

Application:

It wildly used in Steel industries, foundries, fabrication factories, shipyards and transport industries.

How to choose the model and quantity of our lifting equipments as a combination of several units?

Part no. of YC2-5/Fis suitable for steel billets of that the thicknesses are during 40-60mm, The width of the plates are less than 2.5meters.

According to the length of the steel billets, The length of each lifting equipment should be between 3 meters.

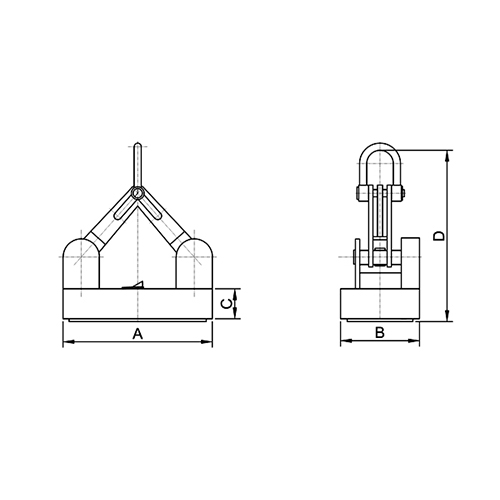

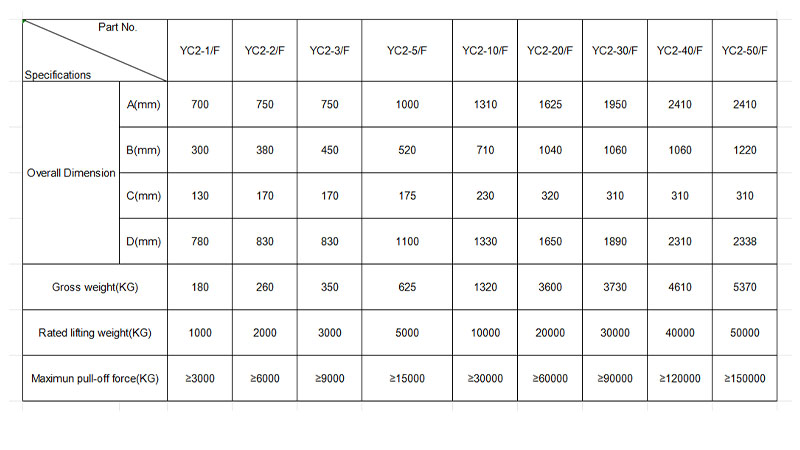

Permanent magnets specifications:

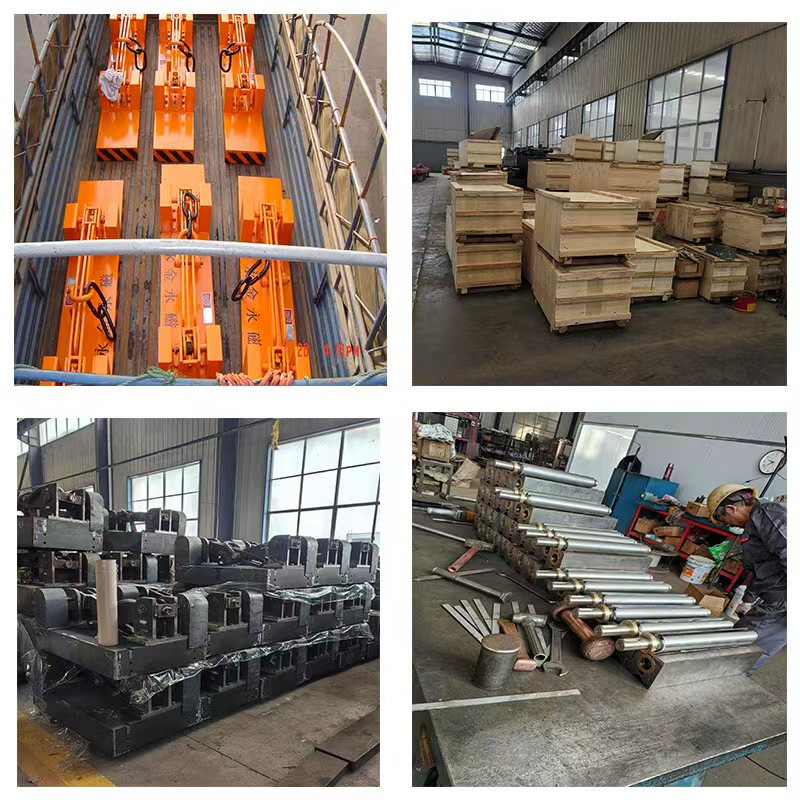

Fatory View:
