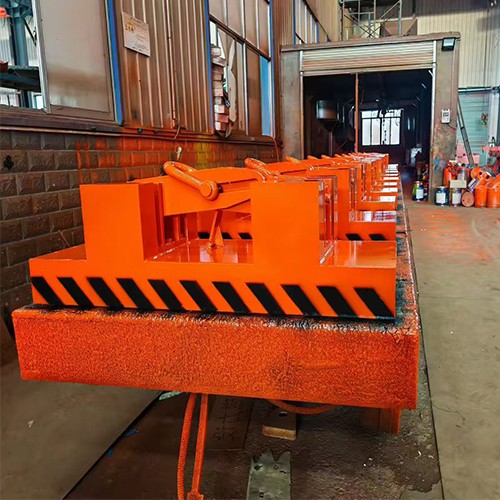

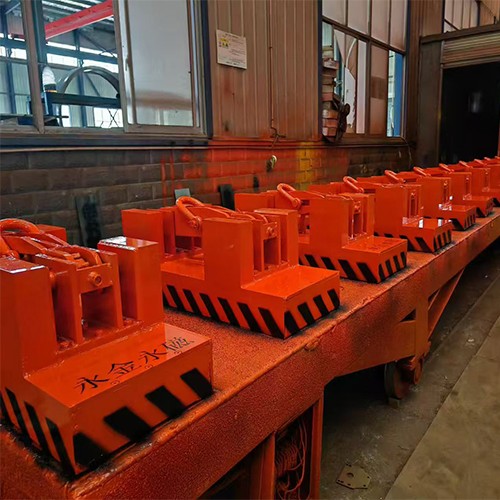

YC2-3L Large Lifting Capacity permanent magnet lifting for Steel tube And plates

Working Principles Of Permanent Lifting Magnets:

Permanent magnet lifting ismade up of magnetic materials and steel parts that create a path along which the magnetic flux travels from magnetic

Materials to the ferromagnetic load to be lifted.

This type isconstructed with high-grade Neodymium magnets and mild steel in order to achieve high magnetic force and compact sizes.

It has two magnetic sources, one in the main body and the other in the rotor. If the two magnetic sources are in the same magnetic direction,

The magnetic flux under the poles of the magnetic projection increases to a ferromagnetic load. On the other side, when the two magnetic sources

Are in opposite magnetic directions, they suck up each other’s energy. Moreover, no magnetic flux can be extracted from the lifting magnet. In the meantime,

the lifting magnet is not attracted to the load being lifted.

By controlling the rising and falling of the crane, the magnetic direction of the magnetic source in the rotor to attract and release the load can be adjusted.

Features:

This type is made of permanent magnet, that which it is of automatic degaussing permanent magnet lifting equipment. Adopt special magnetic circuit design,

The structure is more long than conventional products.

With large adsorption and deep magnetic penetration,It would be more stability.

 No electricity, No power outage risk, long life.

By using the up and down of the crane hook, It can generate magnetism and degauss magnetism, to achieve the purpose of automatic suction

And discharge of the steel boards.

Porvides strong and stable magnetic force with easy operation and in crease productivity.

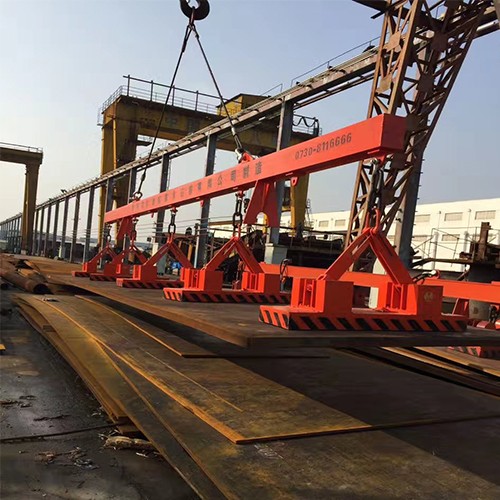

It can be used as a single unit or as a combination of multiple units.

It is suitalbe for lifting medium, thin untra-wide plates, steel billets,steel rails.

Application:

It wildly used in Steel industries, foundries, fabrication factories, shipyards and transport industries.

How to choose the model and quantity of our lifting equipments as a combination of several units?

 Part no. of YC2-2/L is suitable for steel billets of that the thicknesses are during 5-25mm, The width of the plates are less than 2.5 meters.

According to the length of the steel billets, The length of each lifting equipment should be between 2 meters.

 Part no. of YC2-3/L is suitable for steel billets of that the thicknesses are during 12-30mm, The width of the plates are less than 3 meters.

According to the length of the steel billets, The length of each lifting equipment should be between 3 meters.

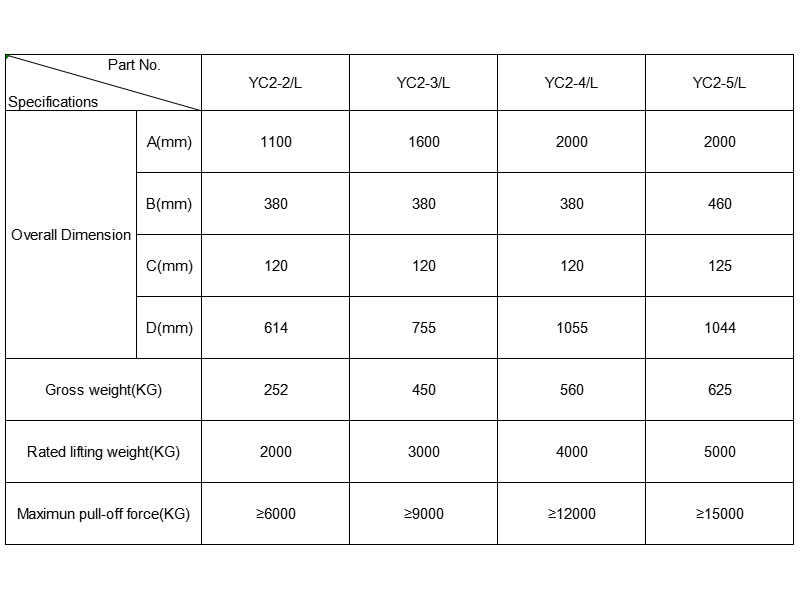

Permanent Lifting MagnetsSpecifations:

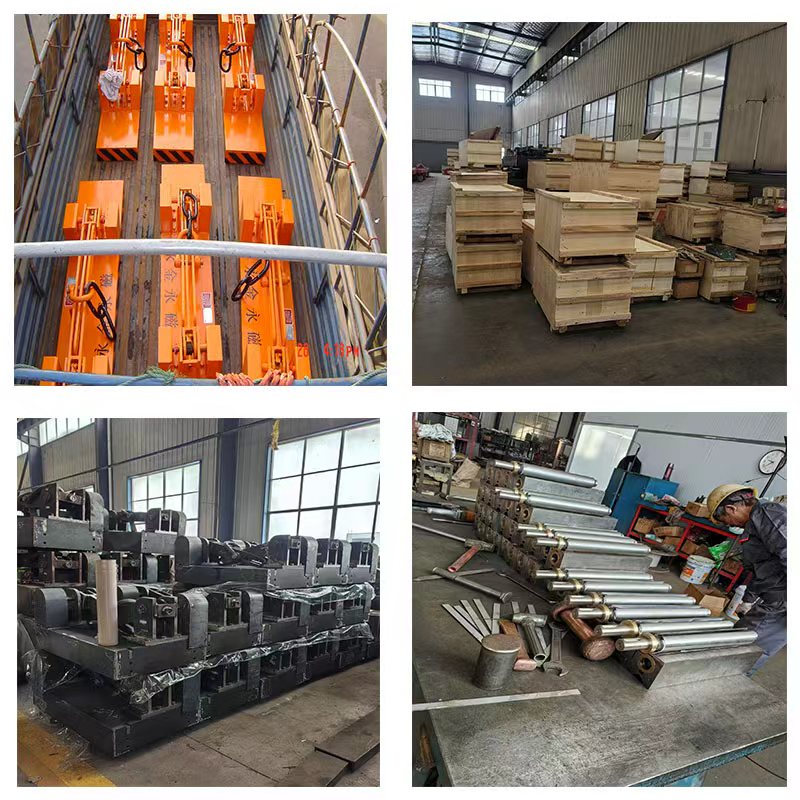

Factory View:
