MW61 High efficiency electro lifting magnet for steel scraps

Features:

1.The lifting magnet for steel scraps is of oval shape which fit in with the carriage shape,so it handle scraps efficiently.

2.This type is made of aluminum wire and the coil protection plate is made of the rolled high Mn steel plate that has good performance.

3.With deep magnetic field and strong magnetic force, it can handle substantial scraps at a time.

4.wear-resistance&heat-proof. It also has the characteristics of light weight,low power consumption, high lifting capacity and long serving lift.

5.It generally adopts the control mode of constant voltage. It can further improve the lifting capacity if changing to adopt the control mode of over excitation.

With simple structure reliability, it is suitable for working with all kinds of lifting equipment.

6.This type has fine insulation structure. The insulation treatments adopt the vacuum trying&glue filling, Which has improved the electrical and

Mechanical performance of the coils.

Applications:

It is used for handling cast iron ingots, steel balls.

Main Specifications:

Normal temperature type, duty cycle td-60%

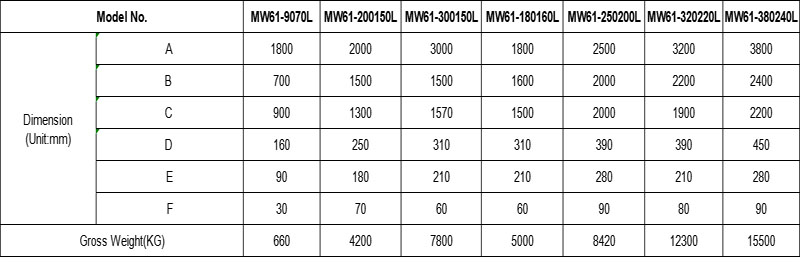

The dimensions and weights of MW61 Series

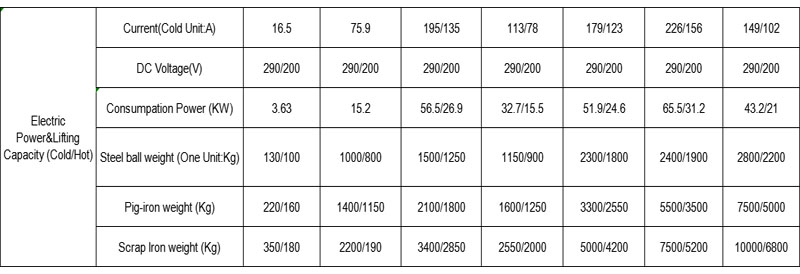

Electric Power&Lifting Capacity (Cold/Hot) of MW61 Series

Notes:

1.By constant Voltage mode adpots DC220V.

 2.By strong excitation mode, The voltage is DC290V in the beginning, And it would be DC220V during the transporting operition.

 3.Crane capacity in the table is the lifting weight under ideal conditions.
