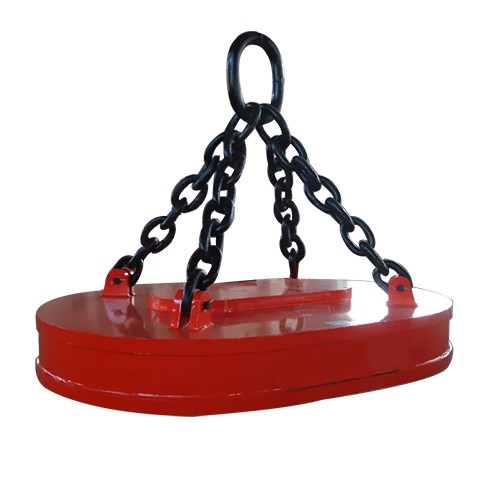

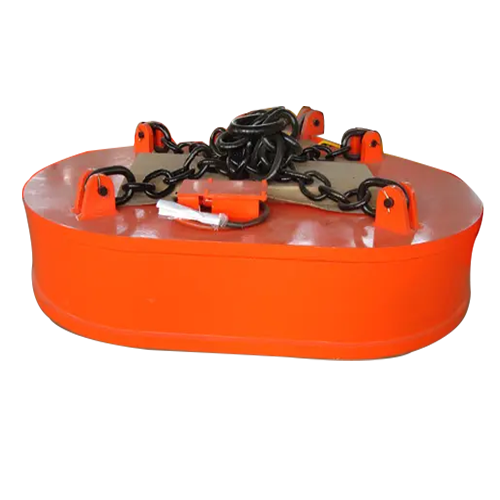

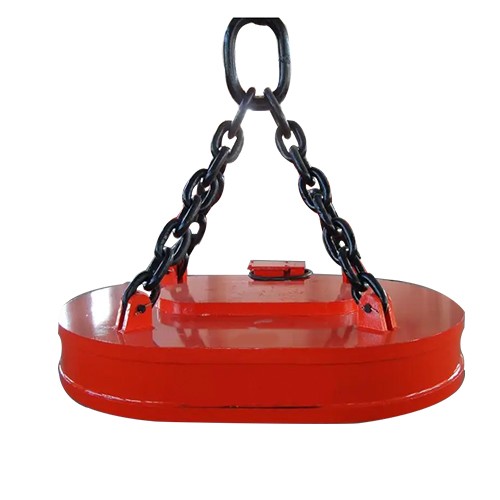

MW61 series Overall Electromagnetic Sucker for handing scrapes

MW61 series Overall Electromagnetic Sucker for handing scrapes

This Electromagnetic sucker is of oval shape which fit in with the carriage shape,so it handle scraps efficiently.
With deep magnetic field and strong magnetic force, it can handle substantial scraps at a time.

Features:

This Electromagnetic sucker is of oval shape which fit in with the carriage shape,so it handle scraps efficiently.

With deep magnetic field and strong magnetic force, it can handle substantial scraps at a time.

This type is made of aluminum wire and the coil protection plate is made of the rolled high Mn steel plate that has good performance of wear-resistance&heat-proof. It also has the characteristics of light weight,low power consumption, high lifting capacity and long serving lift.

This type has fine insulation structure. The insulation treatments adopt the vacuum trying&glue filling, Which has improved the electrical and mechanical performance of the coils.

It generally adopts the control mode of constant voltage. It can further improve the lifting capacity if changing to adopt the control mode of over excitation.

With simple structure reliability, it is suitable for working with all kinds of lifting equipment.

Main Specifications:

Normal temperature type, duty cycle td-60%

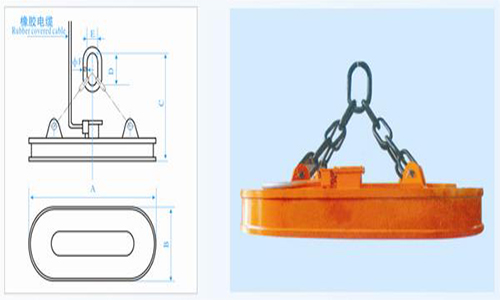

The dimensions and weights of MW61 Series

Model No.		MW61-9070L	MW61-200150L	MW61-300150L	MW61-180160L	MW61-250200L	MW61-320220L
Dimension (Unit:mm)	A	1800	2000	3000	1800	2500	3200
	B	700	1500	1500	1600	2000	2200
	C	900	1300	1570	1500	2000	1900
	D	160	250	310	310	390	390
	E	90	180	210	210	280	210
	F	30	70	60	60	90	80
Gross Weight(KG)		660	4200	7800	5000	8420	12300

Electric Power&Lifting Capacity (Cold/Hot) of MW61 Series

Electric Power&Lifting Capacity (Cold/Hot)	Current(Cold Unit:A)	16.5	75.9	195/135	113/78	179/123	226/156
	DC Voltage(V)	290/200	290/200	290/200	290/200	290/200	290/200
	Consumpation Power (KW)	3.63	15.2	56.5/26.9	32.7/15.5	51.9/24.6	65.5/31.2
	Steel ball weight (One Unit:Kg)	130/100	1000/800	1500/1250	1150/900	2300/1800	2400/1900
	Pig-iron weight (Kg)	220/160	1400/1150	2100/1800	1600/1250	3300/2550	5500/3500
	Scrap Iron weight (Kg)	350/180	2200/190	3400/2850	2550/2000	5000/4200	7500/5200
