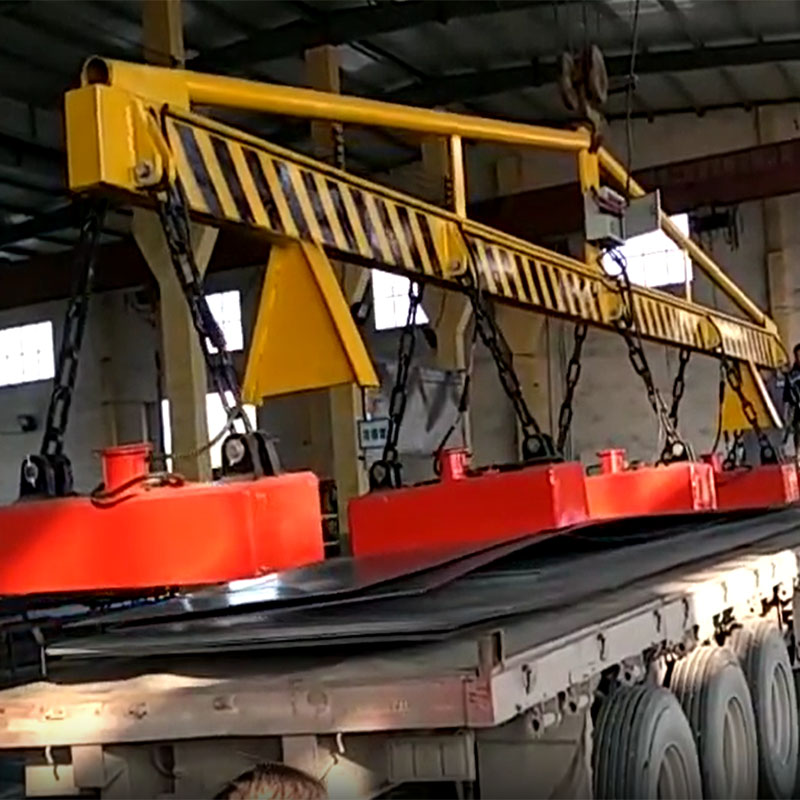

MW84 Electro Load lifting magnet for transporting steel plates

Applications:

This load lifting magnets is Extensively used  in steel sheet  manufacturer, foundries,shipyards and transport industries.etc.

Features:

This electro load lifting magnets is specially designed for lifting and transporting steel plate of medium thickness. The lifting operation is safe, accurate and quick.

Considering possible bending and deforming may affect safe transportation, when lifting long steel plate, please use the combination of several electric magnets.  As for

Medium thickness steel plate(6mm-32mm), the space between each electromagnet should be 3 to 4 meters.According to different lifting pieces, the series

Is divided into type 350 to type 400. Type 350 is suitable for medium thickness plate factory, ship building factory  and machinery manufacturing factory. Type

400 is suitable for transporting as many as possible pieces at a time, and can design and manufacture high temperature type products used for lifting and

Transporting steel plate below 700 ℃ according to customer’s requirements.

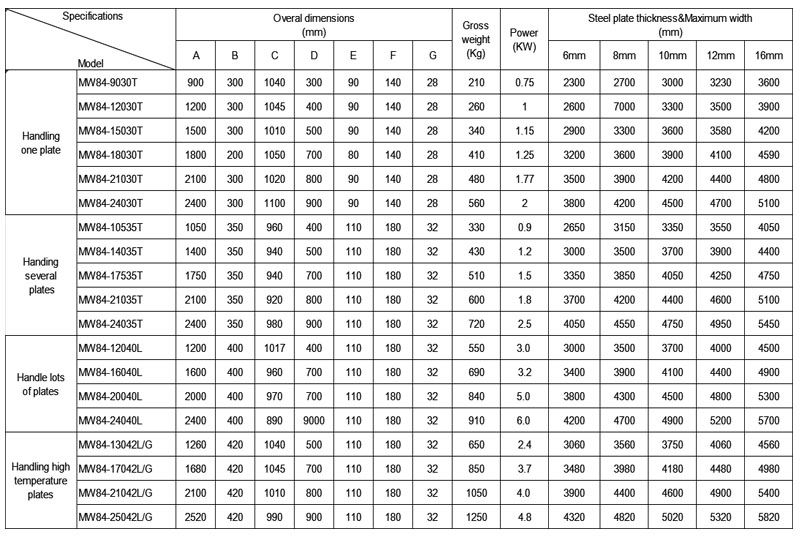

Main Specifications:

Normal temperature type, duty cycle td-60%

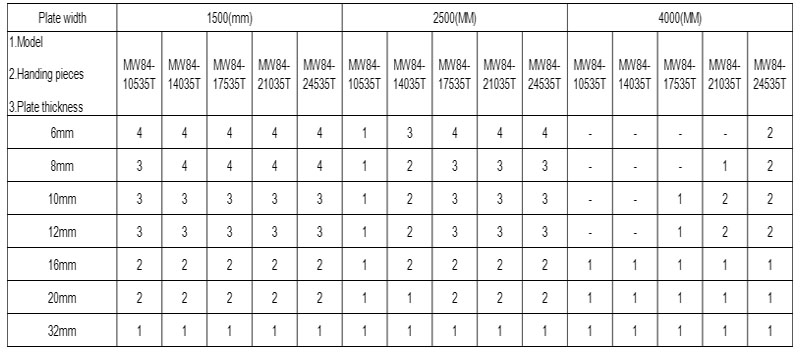

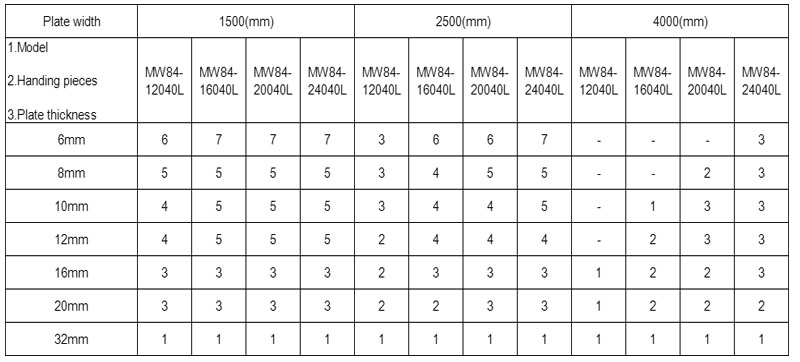

Example of assured handing numbers of steel plates:

1.

2.
